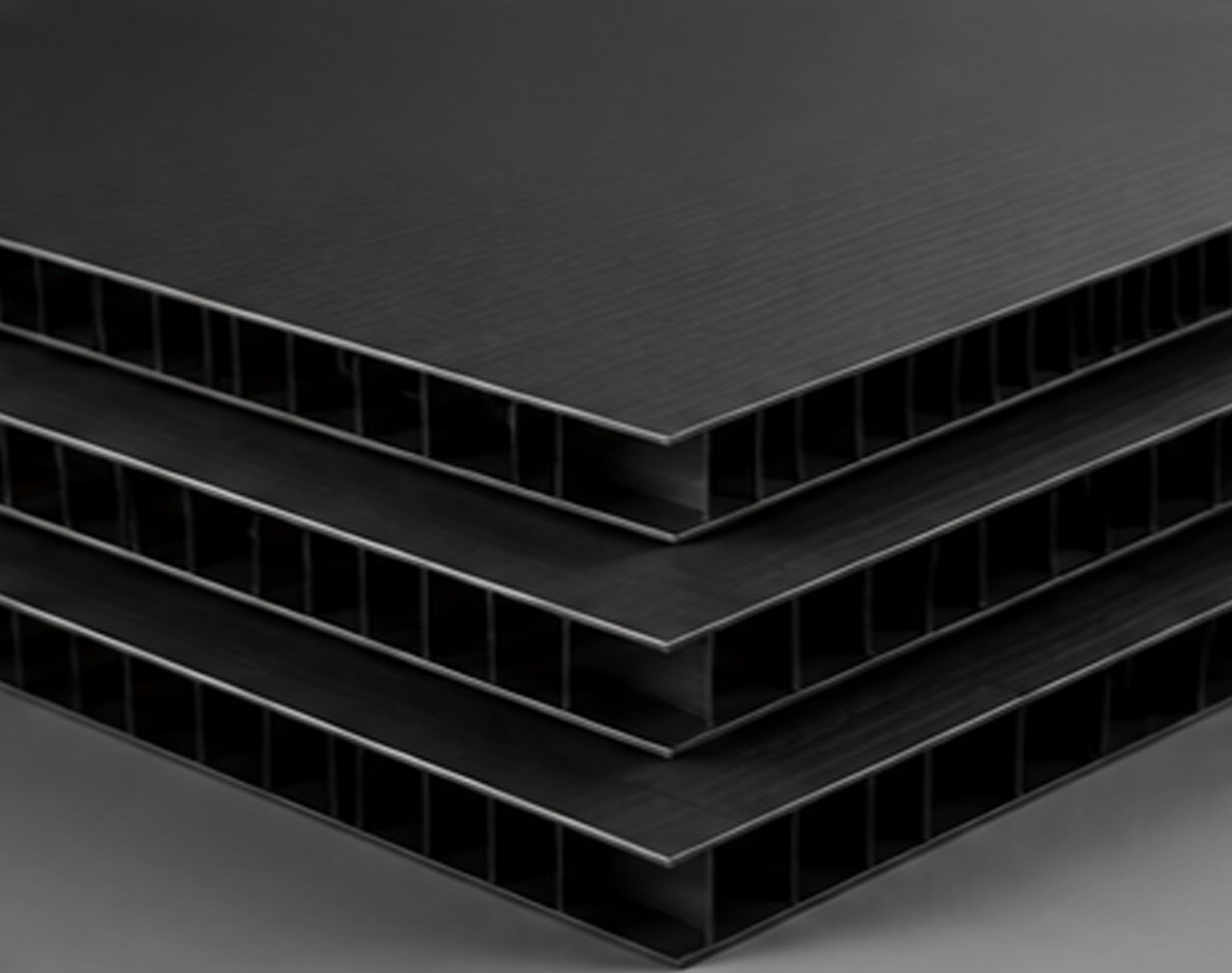

Double Flute

PP Corrugated Sheets

Engineered for maximum strength, stiffness, and impact resistance, Double Flute PP Corrugated Sheets are designed for heavy-duty industrial applications where standard corrugated sheets are insufficient. The dual-wall flute structure provides exceptional load-bearing performance for bulk handling, returnable packaging, and demanding logistics environments.

Request Sample → Download Datasheet ↓

High Strength

Dual-wall flute construction delivers superior compressive strength and load-bearing capability.

Impact Resistant

Designed to withstand shock, vibration, and rough handling during industrial operations.

Lightweight

Offers excellent strength-to-weight performance compared to alternative heavy-duty materials.

Reusable

Long service life with multiple usage cycles.

Customisable

Available in custom thicknesses, GSM ranges, colours, dimensions, and fabrication options.

APPLICATIONS

Heavy-Duty Packaging

Suitable for large industrial containers, returnable packaging systems, export packaging, and bulk transportation solutions.

Bulk Handling

Engineered for environments requiring high load capacity, stacking performance, and repeated handling.

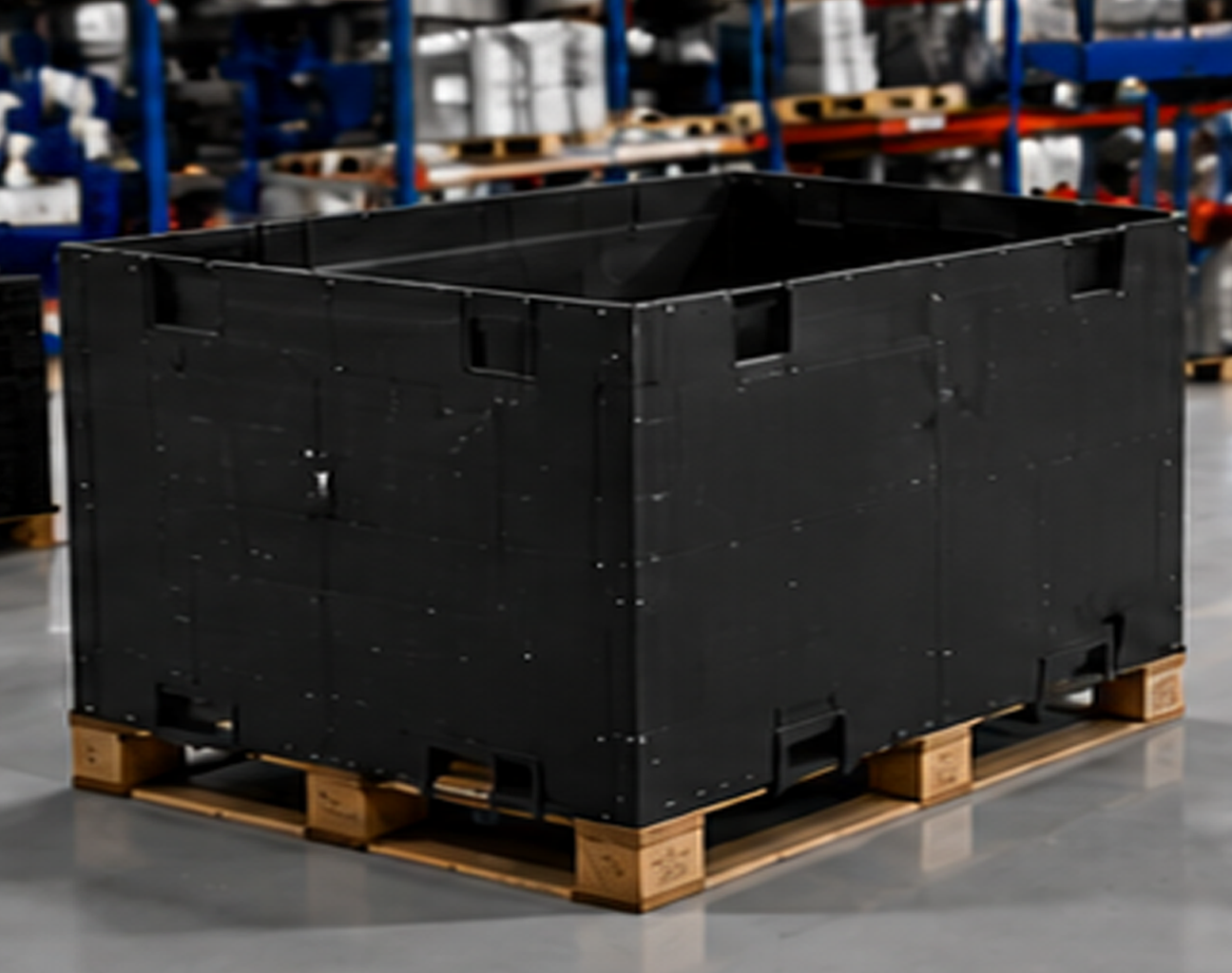

Pallets & Crates

Used for pallet sleeves, heavy-duty crates, industrial containers, and material movement systems.

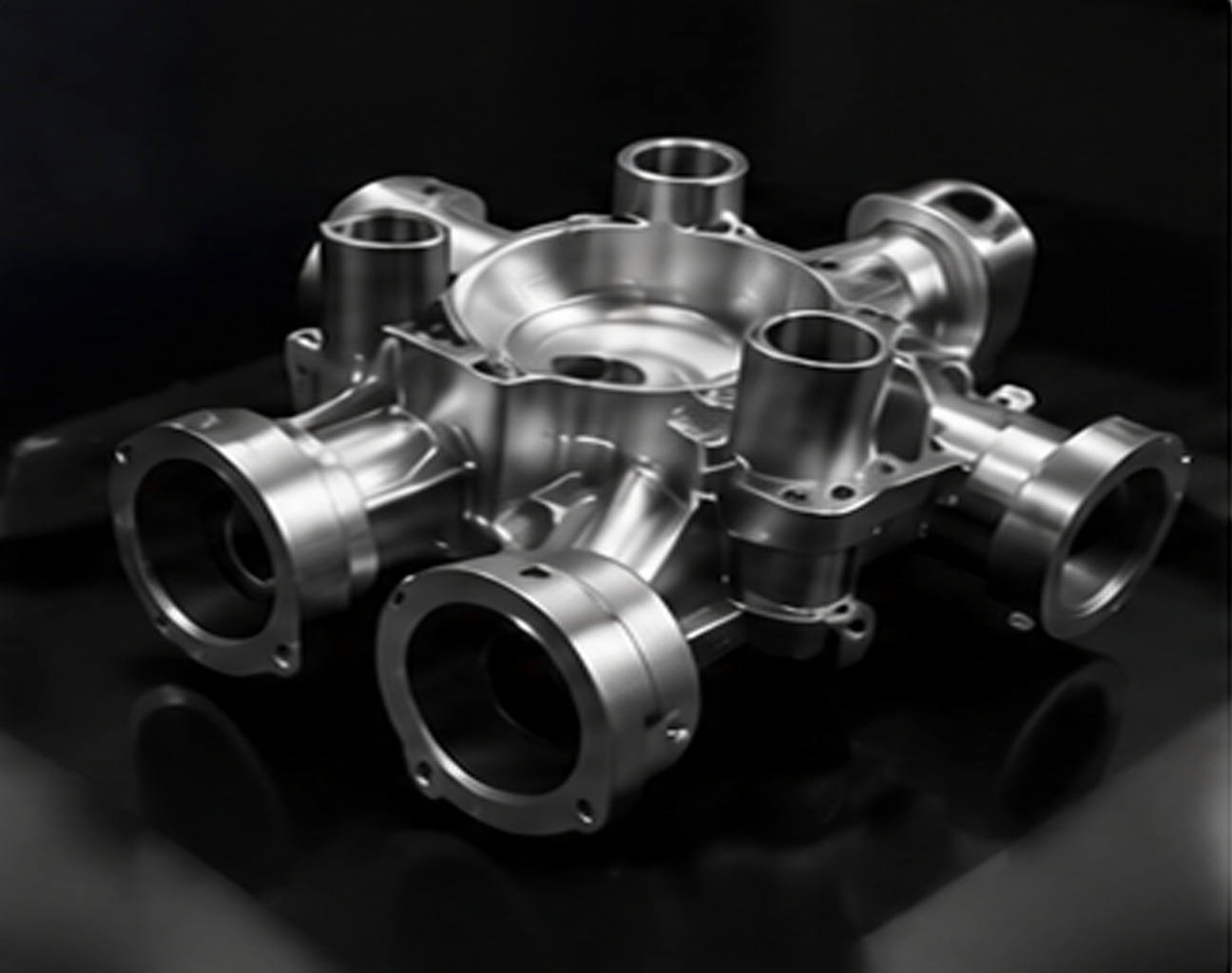

Industrial Components

Provides protection for heavy automotive, engineering, and manufactured components during storage and transit.

Double Flute Sheet Specification

Parameter	Specification
Flute Type	Double Flute
Thickness Range	8–11 mm
GSM Range	2200–3500 GSM
Maximum Width	Up to 1180 mm
Length	Custom
Colours	Standard & Custom
Surface Options	Natural / Corona Treated

Available Thickness & GSM Range

Thickness(mm)	GSM Range	Max Width(mm)
8 mm	2200–2500 GSM	1600
9 mm	2500–2800 GSM	1600
10 mm	2800–3200 GSM	1600
11 mm	3200–3500 GSM	1600
* Custom specifications available upon request.
