H Flute

PP Corrugated Sheets

Engineered for high compressive strength, load-bearing performance, and industrial durability, H Flute PP Corrugated Sheets are designed for demanding packaging, warehousing, and material handling applications. Their rigid flute structure delivers excellent load distribution while maintaining a lightweight profile.

Request Sample → Download Datasheet ↓

High Strength

Engineered to withstand compressive loads and repeated handling cycles.

Durable

Resistant to moisture, chemicals, impact, and industrial wear.

Lightweight

Excellent strength-to-weight ratio for easier handling and lower logistics costs.

Reusable

Designed for multiple usage cycles with long operational life.

Customisable

Available in custom thicknesses, GSM ranges, colours, and dimensions.

APPLICATIONS

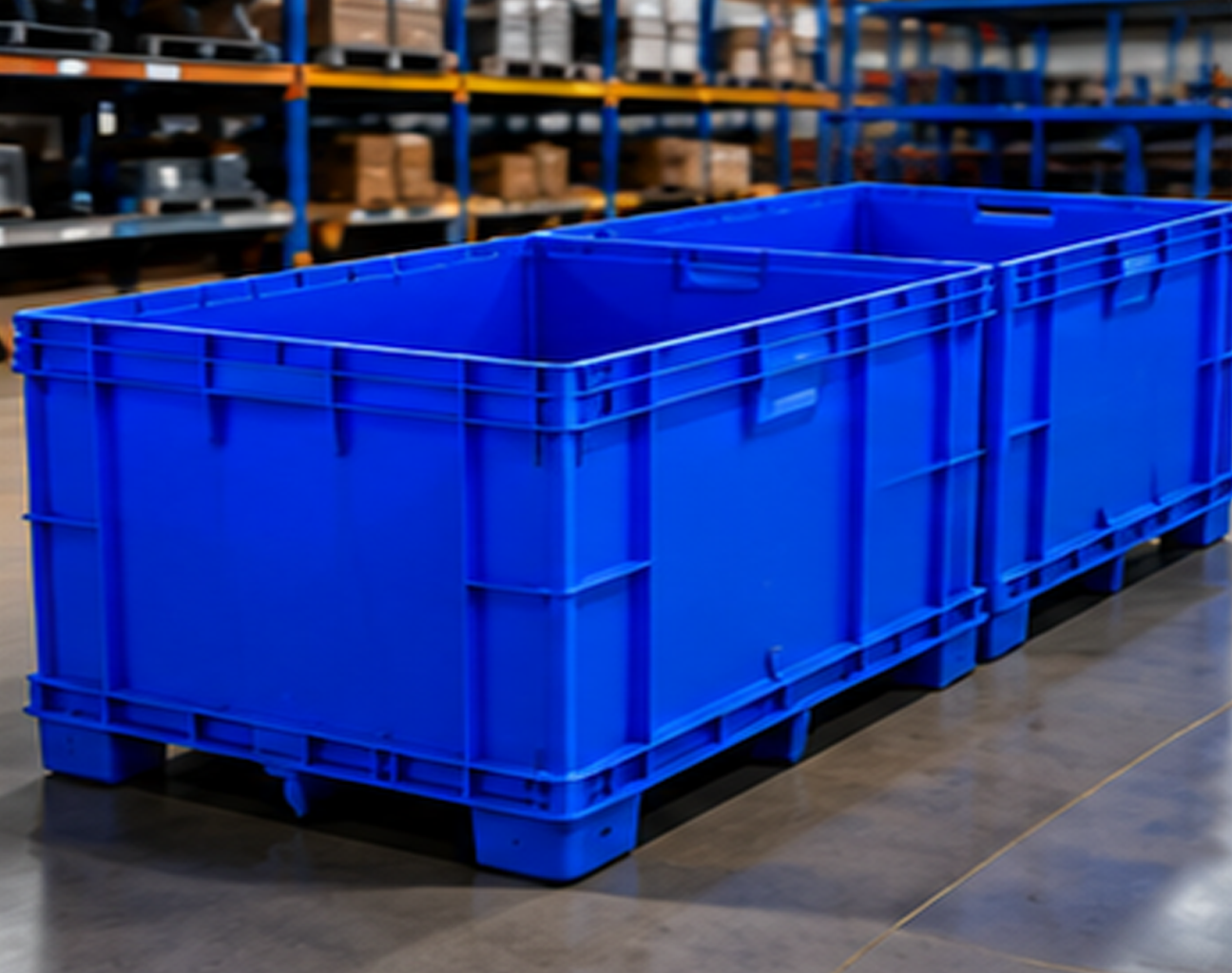

Industrial Packaging

Suitable for returnable packaging systems, transit packaging, and industrial shipping solutions.

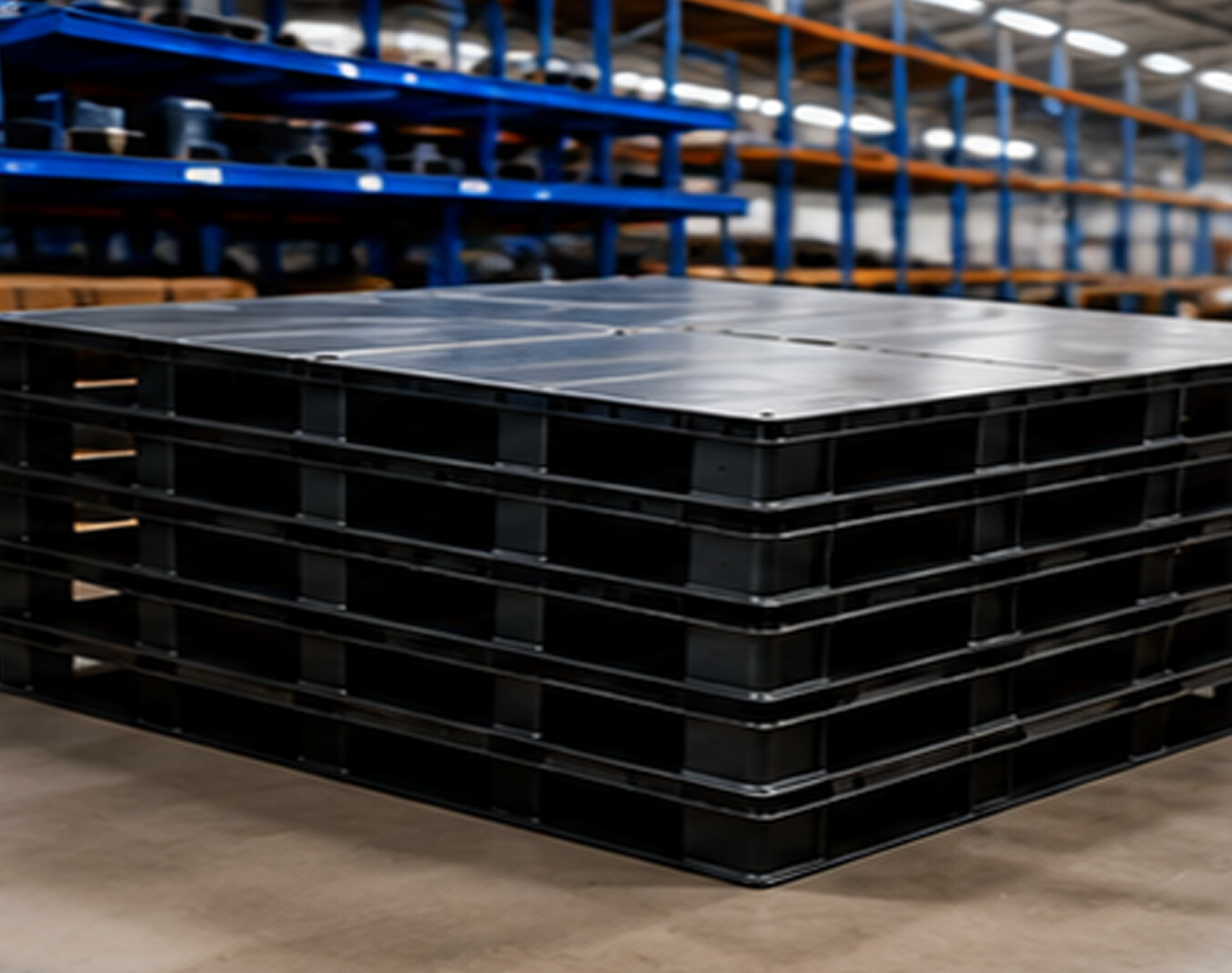

Layer Pads

Provides effective load separation and stacking stability in palletised logistics systems.

Pallet Liners

Protects products against abrasion, moisture, and contamination during storage and transport.

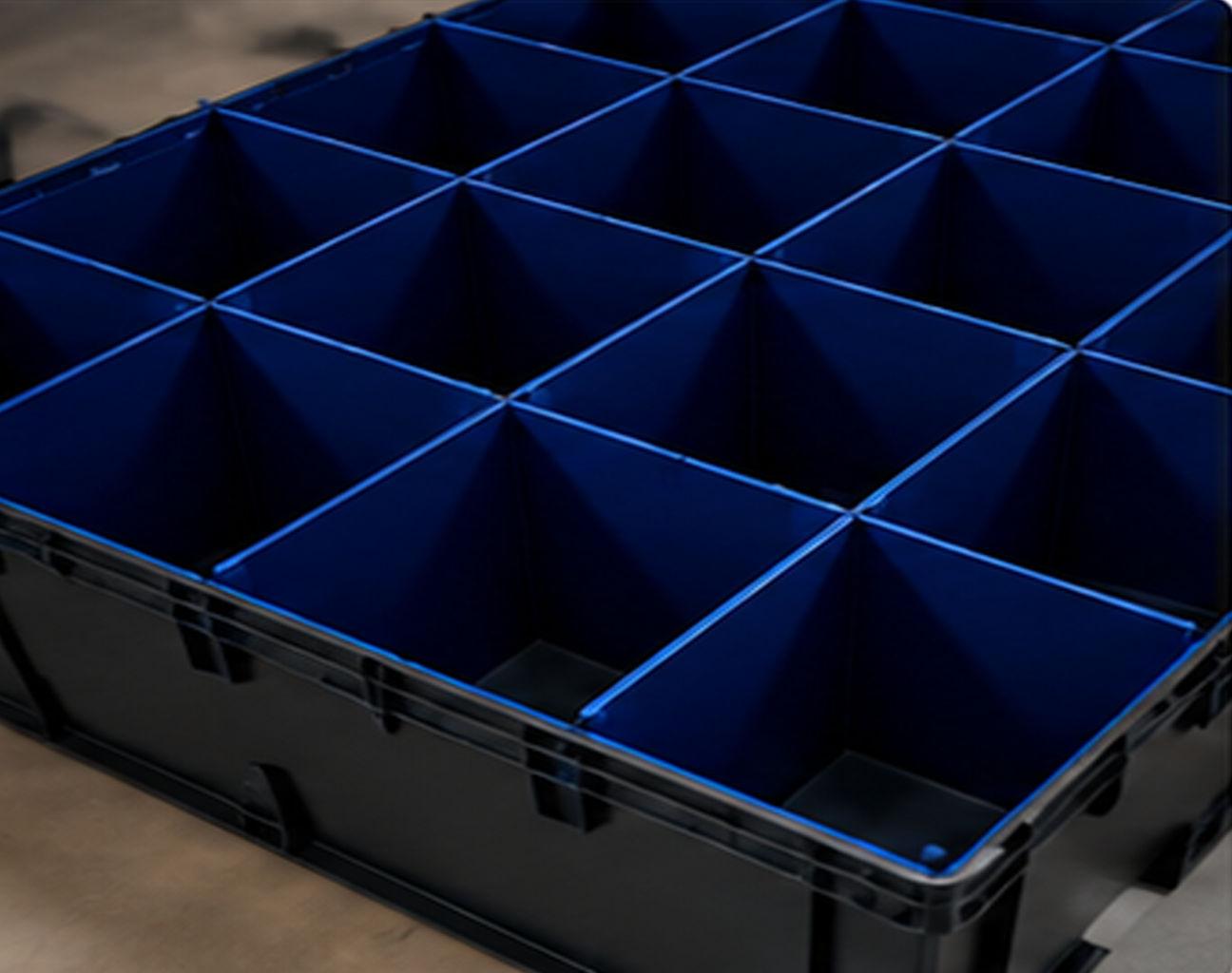

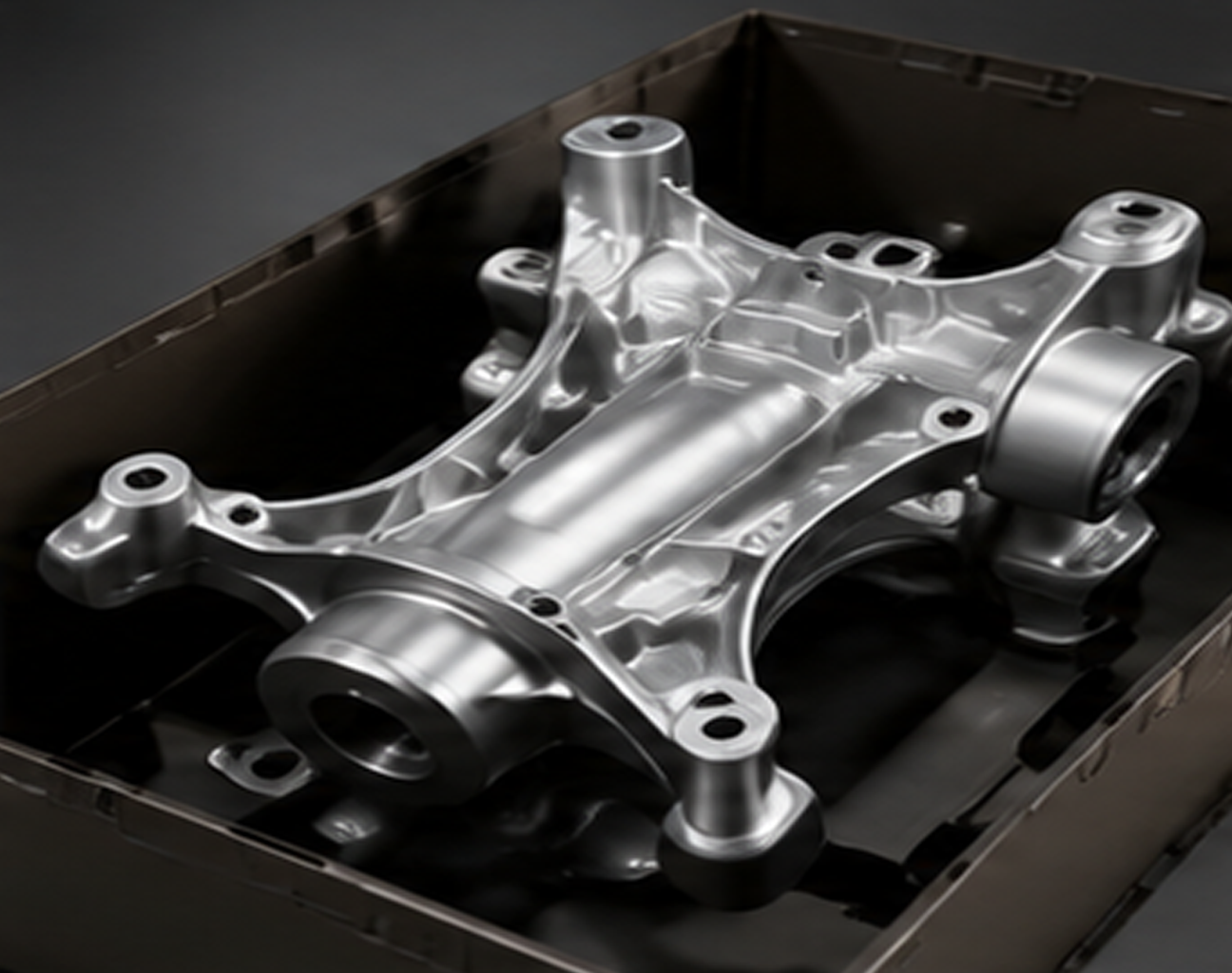

Automotive Components

Used for part segregation, component protection, and returnable packaging systems.

H Flute Sheet Specification

Parameter	Specification
Flute Type	H Flute
Thickness Range	4–8 mm
GSM Range	650–2500 GSM
Maximum Width	Up to 1600 mm
Length	Custom
Colours	Standard & Custom
Surface Options	Natural / Corona Treated

Available Thickness & GSM Range

Thickness(mm)	GSM Range	Max Width(mm)
4 mm	650–1200 GSM	1600
5 mm	700–1500 GSM	1600
6 mm	1000–1500 GSM	1600
7 mm	1300–1800 GSM	1600
8 mm	1500–2500 GSM	1600
* Custom specifications available upon request.
