V Flute

PP Corrugated Sheets

Designed for applications requiring exceptional rigidity and structural performance, V Flute PP Corrugated Sheets feature an angular flute geometry that delivers enhanced stiffness with reduced material deformation. Ideal for structural partitions, industrial panels, machine protection systems, and specialised heavy-duty applications.

Request Sample → Download Datasheet ↓

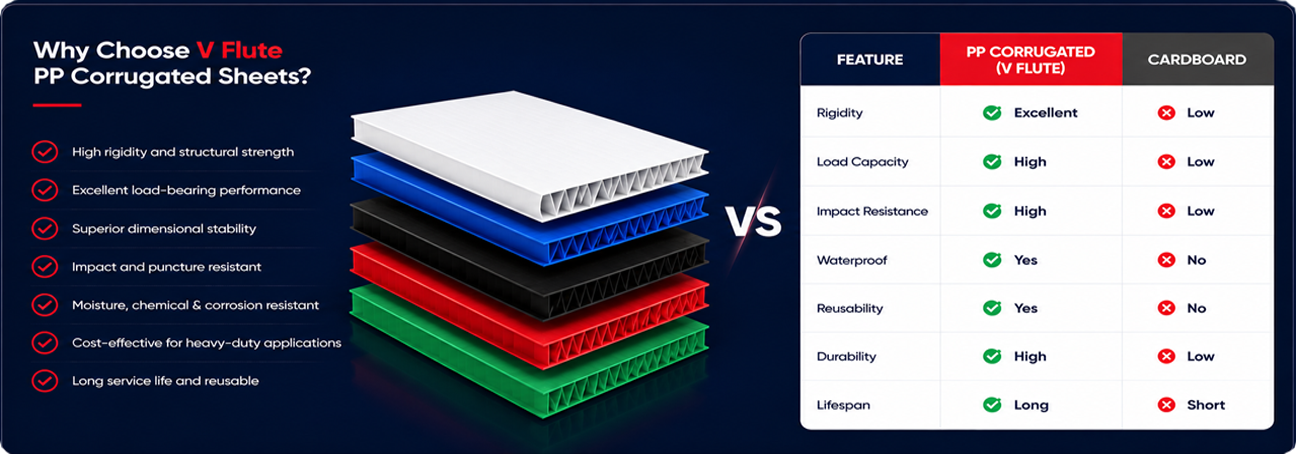

High Rigidity

Angular flute design provides superior structural stiffness and dimensional stability.

Impact Resistant

Resistant to impact, vibration, and demanding industrial handling conditions.

Lightweight

Maintains excellent strength while reducing overall material weight.

Reusable

Designed for multiple usage cycles with long operational life.

Customisable

Available in custom thicknesses, GSM ranges, colours, dimensions, and fabrication options.

APPLICATIONS

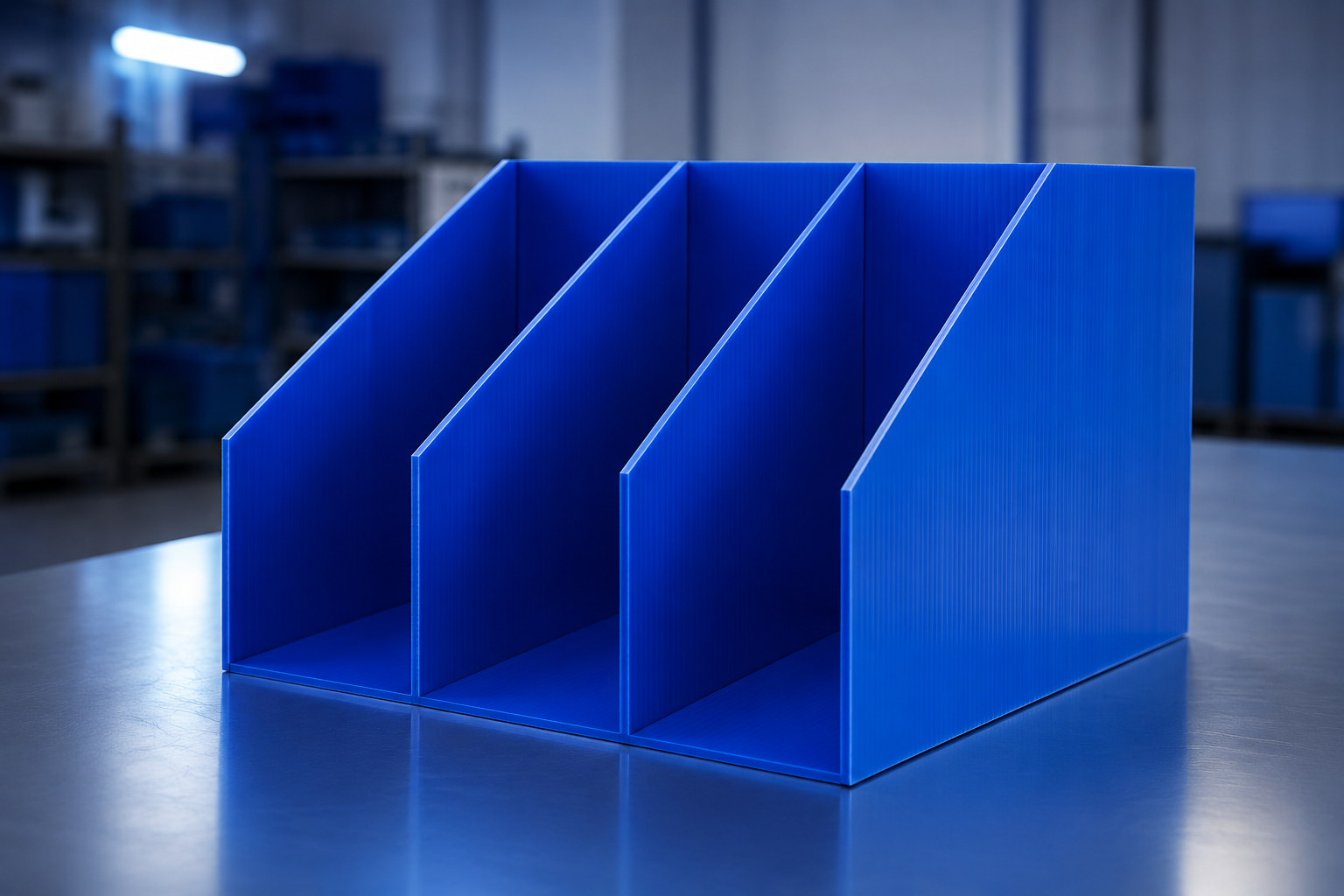

Industrial Partitions

Ideal for warehouse partitions, factory dividers, workstation segregation, and industrial enclosures.

Structural Panels

Used for rigid panel applications requiring dimensional stability and durability.

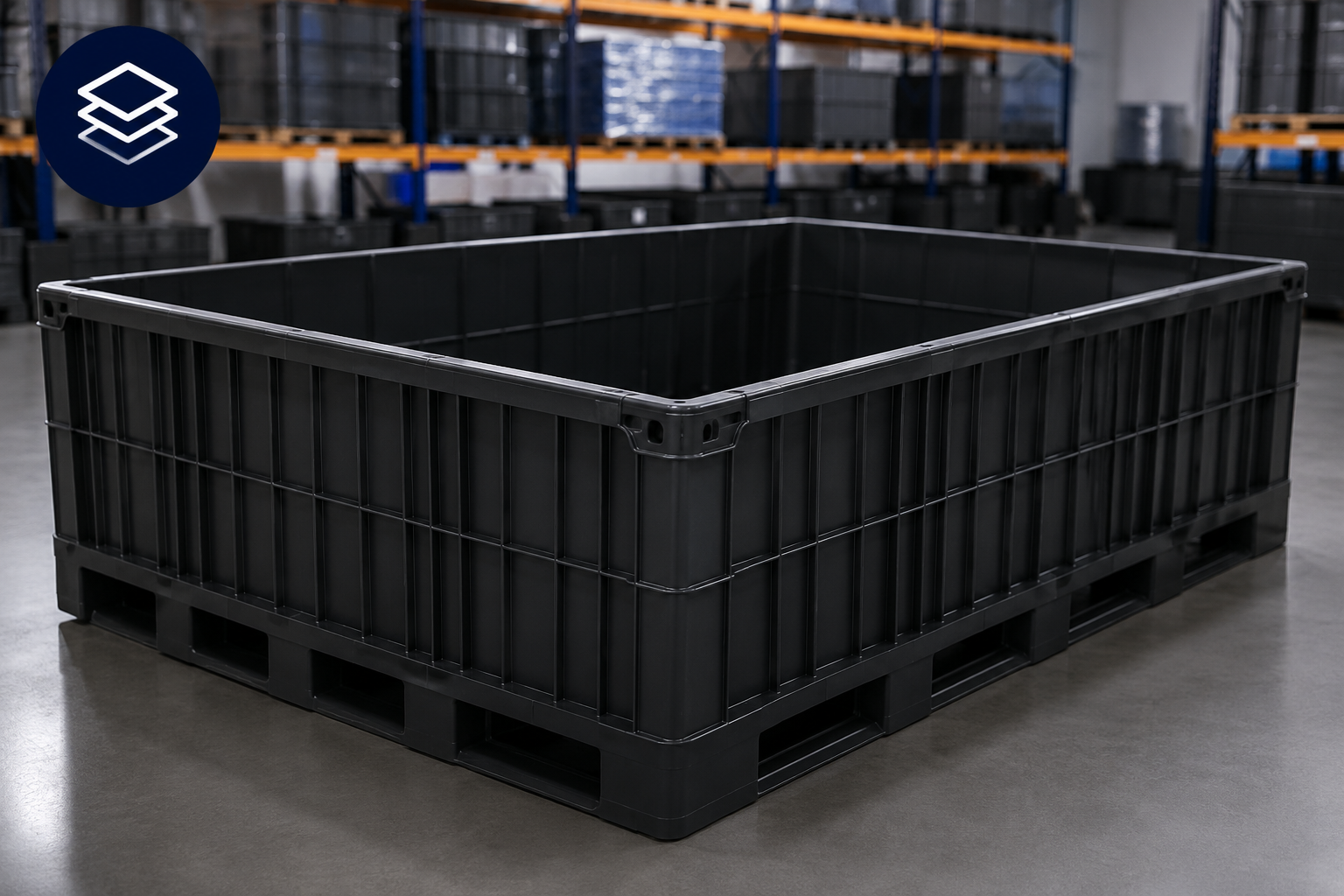

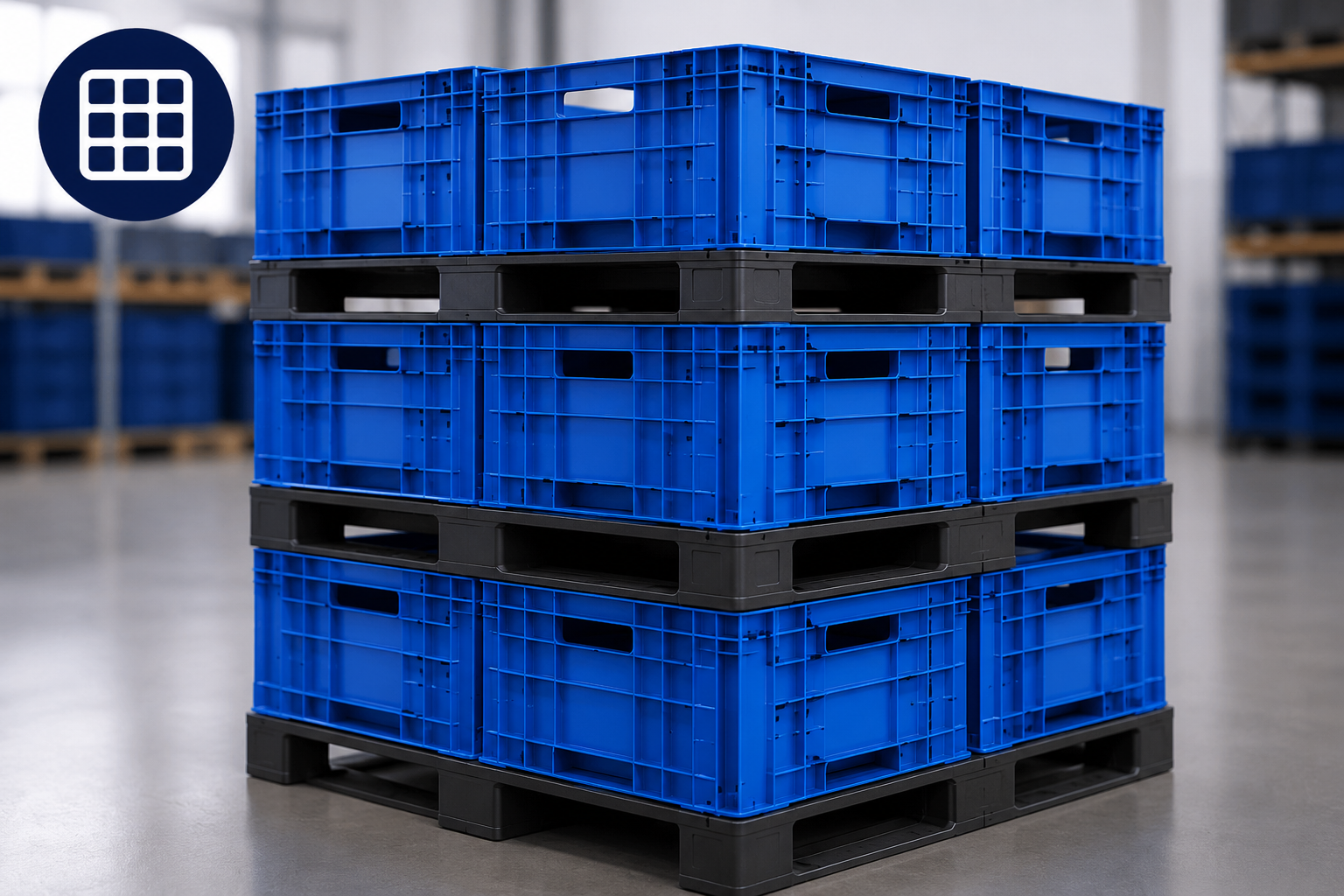

Heavy-Duty Crates

Suitable for custom industrial containers, transit systems, and specialised handling applications.

Signage & Display Systems

Provides improved rigidity for larger-format signs, information boards, and display structures.

V Flute Sheet Specifications

ParameterSpecification
Flute Type V Flute
Thickness Range 5–8 mm
GSM Range 1500–2500 GSM
Maximum Width Up to 1600 mm
Length Custom
Colours Standard & Custom
Surface Options Natural / Corona Treated

Available Thickness & GSM Range

Thickness(mm) GSM Range Max Width(mm)
5 mm 1500–1800 GSM 1600
6 mm 1800–2100 GSM 1600
7 mm 2100–2300 GSM 1600
8 mm 2300–2500 GSM 1600
*Custom specifications available upon request.
